Single Girder Semi-Gantry Crane
- Lifting Capacity 0.5-32t
- Span Length 8-35m
- Lifting Height 6-18m
- Working Class A3,A4,A5
| Single Girder Semi-Gantry Crane | Lifting Height:6-18m | Capacity:0.5-32t | Warranty:3 years |
| Lifting Speed:0.33-8m/min | Travel Speed:2-20m/min | Power Supply:220V/380V 3Phase or Customized | Control Method:Remote Control |
Product Description

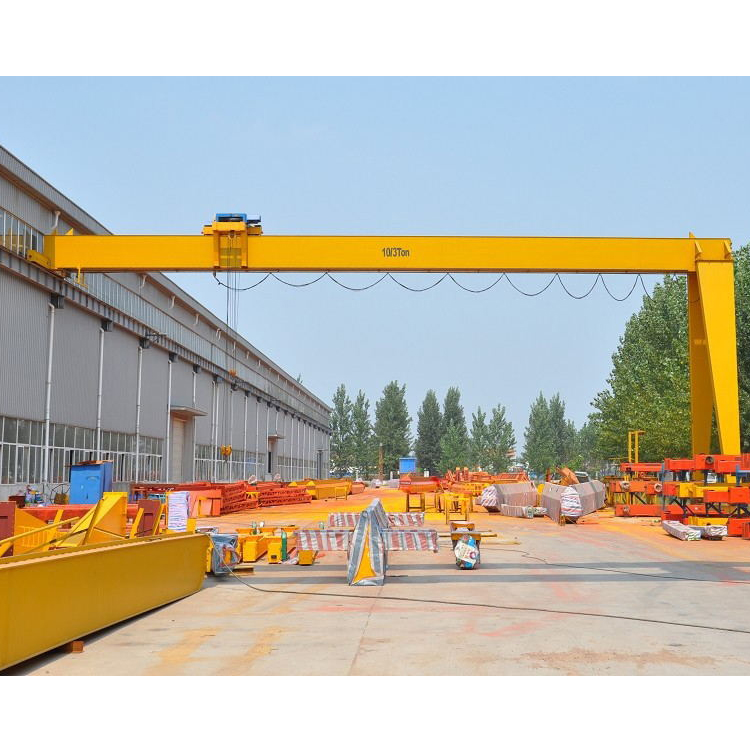

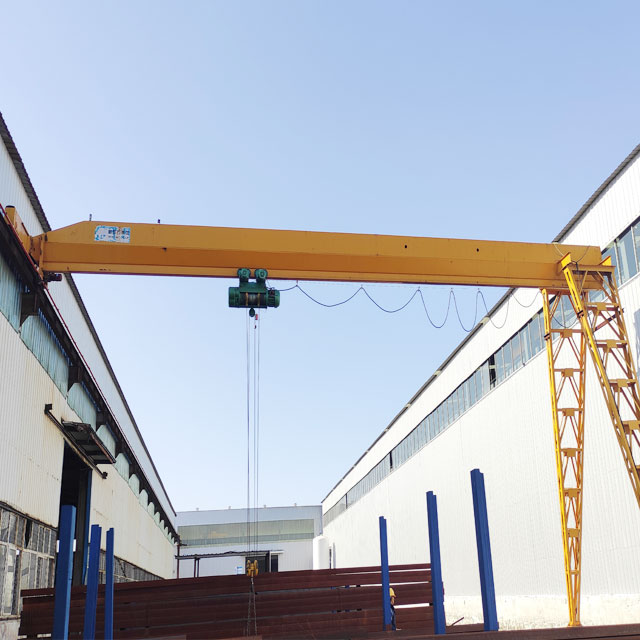

Single Girder Semi-Gantry Crane
The semi-gantry crane with electric block, a type of middle- and small-size lifting equipment which runs along rails, is mainly composed of gantry (girder, leg, lower cross beam etc.), hoisting mechanism, travelling mechanism and electric control part. With the electric hoist as hoisting mechanism, it runs along the lower flange of the I-steel of the girder. The gantry has a leg at its one side and runs along the ground rails, and has no leg at the other side and runs along the rails on the factory workshop. The rest structure and configuration.are the same as the MH gantry crane with electric block.
Product Description
Product
Product Main Features
01:
Simple and compact structure, steady performance.
02:
Easy to install and high efficiency.
03:
Pendent control and remote control.
04:
Easy maintenance.
05:
Preventing hook clashing the top, set shields and barriers.
06:
Equipped with lifting mechanism, electrical control box and rainproof devices.
Safety Devices
- Overload protection: This safety device detects when the load being lifted exceeds the maximum weight capacity of the crane, and it automatically stops the lift to prevent overloading and potential accidents.
- Limit switches: These devices limit the motion of the crane by stopping it when it reaches a certain point.
- Emergency stop buttons: These buttons allow the operator to stop the crane immediately in case of an emergency.
- Anti-collision devices: These devices prevent collisions between the crane and other objects in the vicinity.
- Warning alarms: These alarms are used to alert workers in the area that the crane is in operation.
Parts Of Crane
About Us
Our Factory
1
Production Workshop
2
Customer visit
3
Exhibition
4
ISO Certifiaction
5
CE Certifiaction
6
Our Services:
▶3 years warranty
▶Free distribution of wearing parts
▶Provide assemble videos before shipment
▶Technical support and field installation
Package and Delivery
Packing & Delivery terms:
▶Hoist and electric parts will be packed by plywood crate, for avoiding the damage from goods crash and impact during the delivery.
▶Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
▶Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.
FAQ
-
1How can I get a precise crane offer?
To providing you a precise crane offer efficiently, please kindly provide details as following:
Lifting capacity; material weight(unit as tonnage)
Lifting height; (unit as meter)
Crane span; the width of inquired crane(unit as meter)
Crane traveling length; when rail track/runway beam needed, traveling length shall be provided.
Working power; power source at site(unit as voltage, phase and Hz)
-
2Can I get your crane products with customized/personalized service?
A.Yes, Dowellcrane promise customized/personalized products are available for our clients all the time. Just freely let us know your special demands about the products, our engineering team will work on that.
-
3What should I do if I’m not able to install the crane after buying?
A.Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.
-
4How long I can receive my crane products after my order placed?
A.Our production will be started once the payment confirmed. Below are timeline for whole procedure
-
5Do you have any additional service on warranty?
A. Yes, we provide “DowellCrae” service about the warranty, the warranty period will extend to two (2) years, full set of spare partsand working tools will delivered with crane for future replacement and maintenance.
